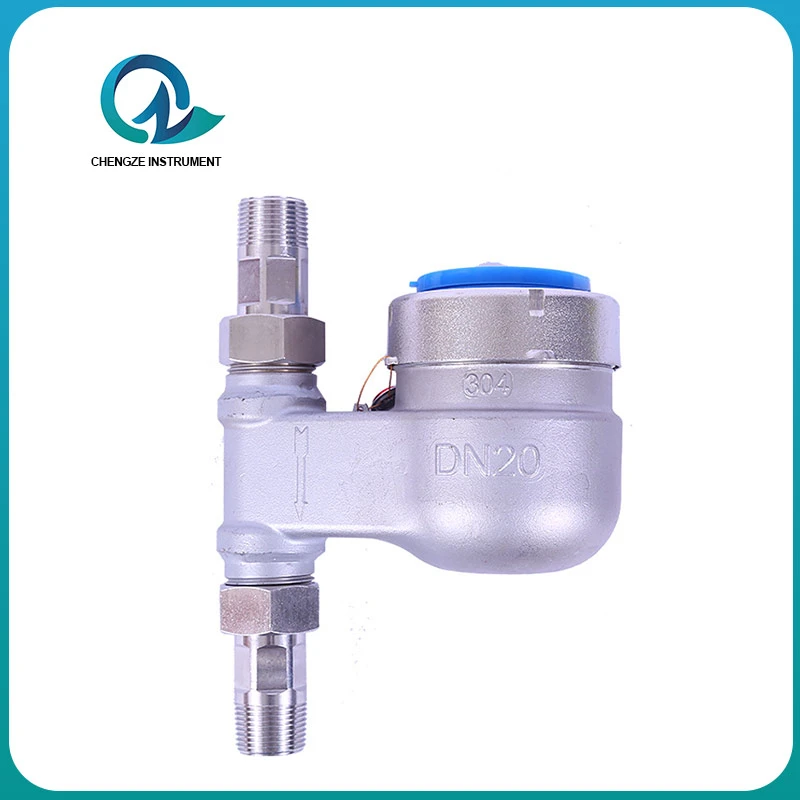

CZ5502 Series LXS-15-40 Rotary Vertical Water meter (Kab hauv qab, sab saum toj)
Qauv: CZ5502
Khoom siv

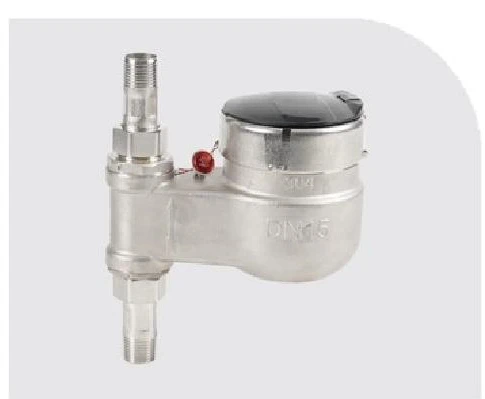

Chengze Instrument specializes nyob rau hauv kev tshawb fawb thiab zus tau tej cov ntsug stainless hlau dej ntsuas. Nws muab cov kev ntsuas dej siab rau kev ntsuas cov kav dej ntsug. Cov khoom no yog ua los ntawm siab -zoo 304/316L stainless hlau thiab nta ib tug ntsug qauv tsim, ua rau nws tsim nyog rau ntsug yeeb nkab systems uas tsis muaj qhov chaw.
Product Core Advantages
Vertical Installation Design: Optimized rau cov kav dej ntsug, nws txuag qhov chaw teeb tsa thiab ua kom yooj yim rau kev teeb tsa cov kav dej
High Precision Measurement: Siv cov ntsuas dej ntws zoo, nrog rau kev ntsuas qhov tseeb raws li cov qauv hauv tebchaws, kom ntseeg tau qhov ntsuas dej kom raug
Corrosion-Resistant Material: Tag nrho cov qauv stainless hlau, tiv taus cov kua qaub thiab alkalis, thiab tiv thaiv -corrosion, haum rau ntau yam dej zoo ib puag ncig
Ntau Cov Yeeb Nkab Loj: Ntau qhov tshwj xeeb ntawm DN15 txog DN200 muaj, ua tau raws li cov kev xav tau ntawm tsev neeg, kev lag luam, thiab kev lag luam hauv ntau qhov xwm txheej
Intelligent Remote Transmission Function: Txhawb NB-IoT/LoRa wireless kis tau tus mob, ua kom cov chaw taws teeb nyeem ntawv nyeem thiab tiag- sijhawm saib xyuas
Long Service Life Design: High - cov ntaub ntawv zoo ua ke nrog cov khoom siv tes ua haujlwm zoo, nrog lub neej ua haujlwm txog li 10 xyoo lossis ntau dua
Daim ntawv thov Domains
Chengze Instrument's ntsug stainless hlau dej ntsuas tau dav siv nyob rau hauv siab - nce cov dej hauv tsev, tiv thaiv hluav taws kub hnyiab, HVAC systems, cov kav dej ntsug, cov khoom siv kho dej, thiab lwm yam, ua rau lawv yog qhov kev xaiv zoo tshaj plaws rau kev ntsuas cov kav dej ntsug.
Kev Pabcuam
Kev ntsuas kub: dej txias 30 degree, dej kub tuaj yeem hloov kho 0-90 degree
Kev ntsuas siab: MAP10
Kev ntsuas siab: AP63
Upstream flow rhiab heev theem: U10
Downstream rhiab heev theem: D5
Margin ntawm yuam kev
A) Qhov siab tshaj plaws tso cai yuam kev ntawm thaj chaw qis (Q1WQ
B) Cov cheeb tsam siab (Q1wQwQ1) Qhov siab tshaj plaws tso cai yuam kev yog ± 2%

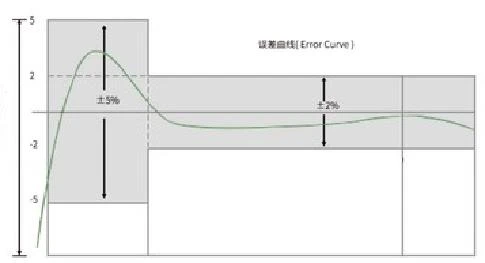

Flow yuam kev Curve

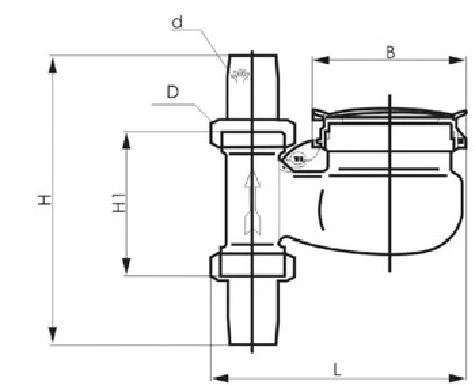

Daim duab Dimensional Drawing
Vertical Water Meter Sab Nraud Dimensions Thiab Nyhav
|
Nominal caliber |
Ntev (mm) |
Dav (mm) |
Qhov siab (mm) |
Txuas cov xov |
Qhov hnyav |
||
|
(DN) |
H |
H1 |
B |
L |
d |
D |
(Kg) |
|
15 |
189 |
55 |
96 |
142 |
R1/2 |
G3/4B |
1.8 |
|
20 |
204 |
110 |
96 |
157 |
R3/4 |
G1 B |
2 |
|
25 |
225 |
107 |
101 |
167 |
R1 |
G11/4B |
3 |
|
32 |
230 |
107 |
101 |
185 |
R11/4 |
G11/2B |
3.4 |
|
40 |
285 |
137 |
125 |
196 |
R11/2 |
G2B |
5 |
Flow Range of Vertical Water Meter
|
Nominal txoj kab uas hla (mm) |
Nominal txoj kab uas hla (mm) |
Overload flow Q₄ |
Common Flow Q ₃ |
Ntug dej ntws Q₂ |
Yam tsawg kawg nkaus Flow Q₁ |
|
m³/h |
|||||
|
LXS -DN15E |
Qib 2 |
3.215 |
2.500 |
0.040 |
0.025 |
|
LXS -DN20E |
Qib 2 |
5.000 |
4.000 |
0.064 |
0.040 |
|
LXS -DN25E |
Qib 2 |
7.875 |
6.300 |
0.100 |
0.063 |
|
LXS -DN32E |
Qib 2 |
12.50 |
10.00 |
0.160 |
0.100 |
|
LXS -DN40E |
Qib 2 |
20.00 |
16.00 |
0.256 |
0.160 |
Cim npe nrov: Tuam Tshoj Vertical Stainless Hlau Dej Meter Chaw tsim tshuaj paus, khoom muag, Hoobkas
